Garrett 2002 Time Machine
 |
| Brand: | Garrett. |
| Model: | 2002 "Time Machine". |
| Origin: | USA. |
| Introduction: | 1974. |
| Type: | Basic desktop calculator with clock and alarm. No battery support, only AC operation. |
| Functions: | 4-basic functions, no constant, no memory. Date and Time, Alarm at a time and Interval timer with alarm. |

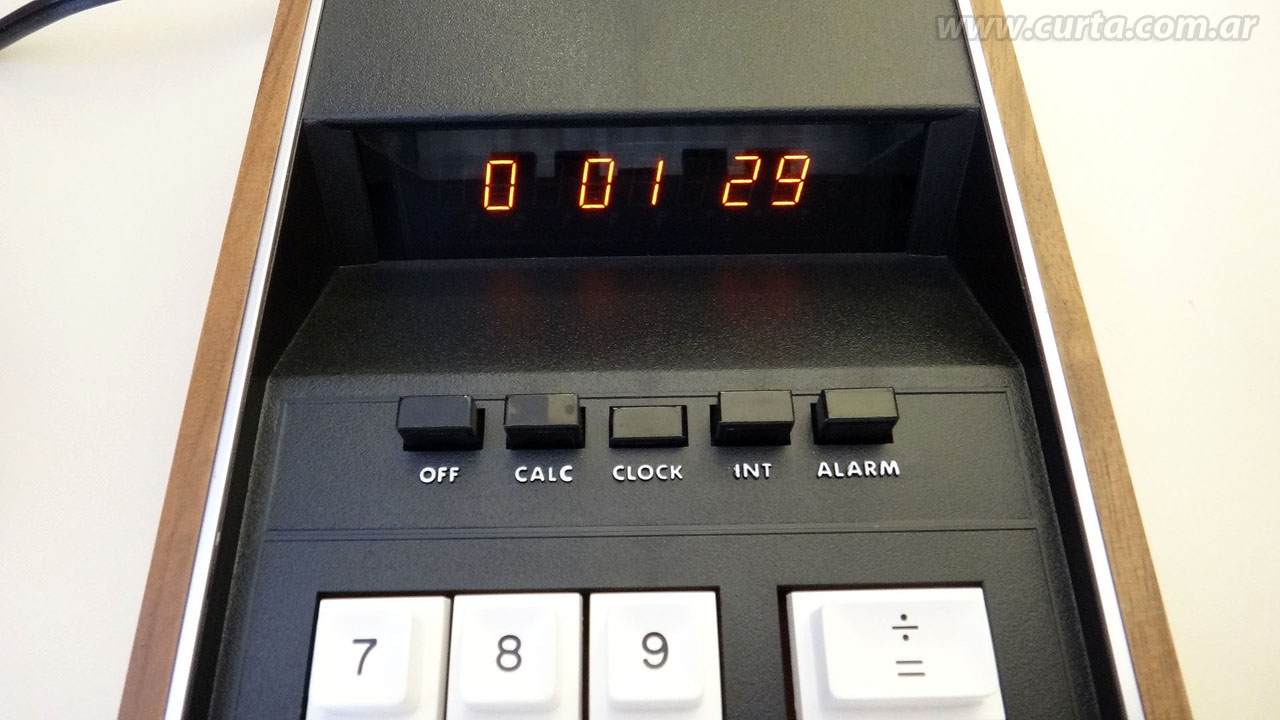

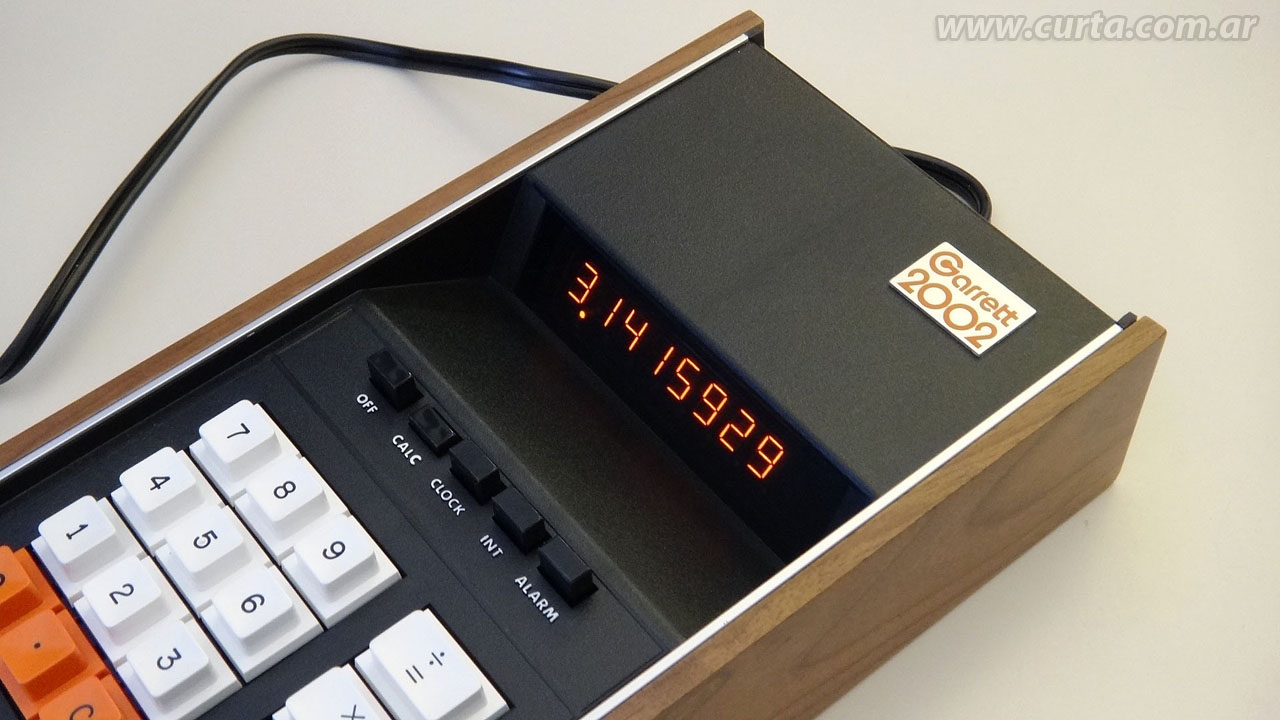

| Display: | Big orange Panaflex II display with 8 digit + indicator (sign and P.M.) with very good visibility. |

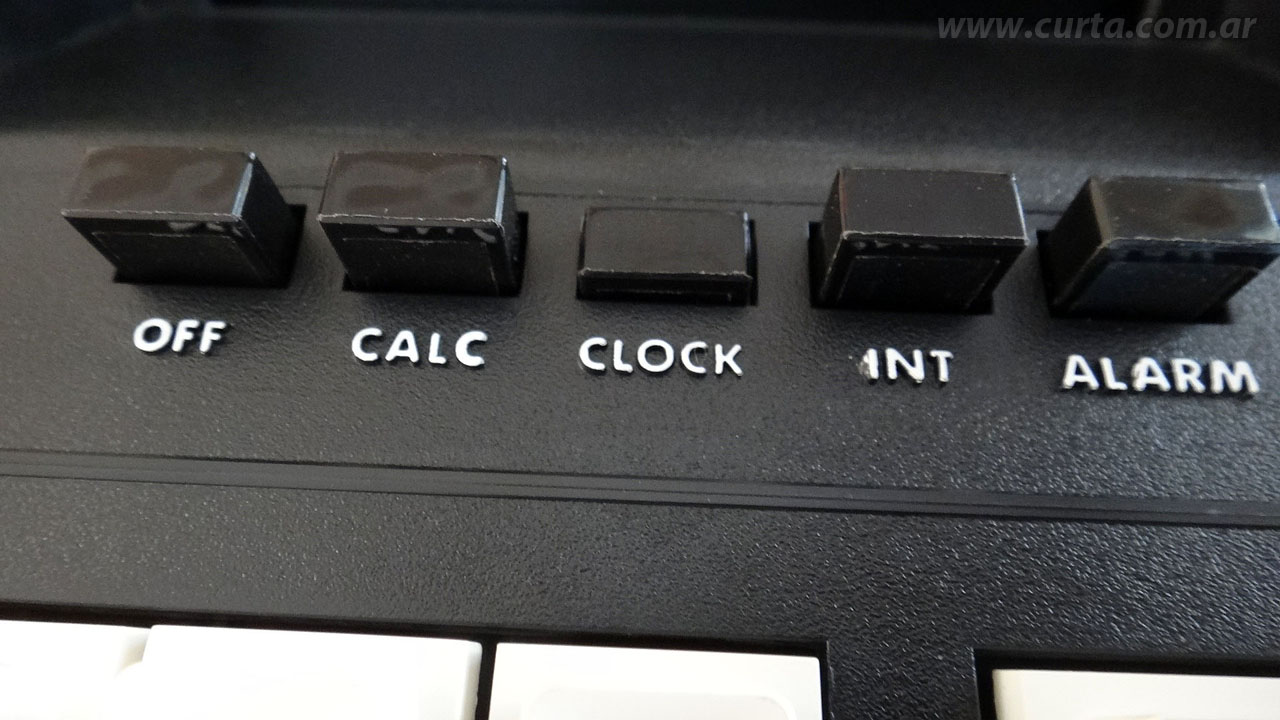

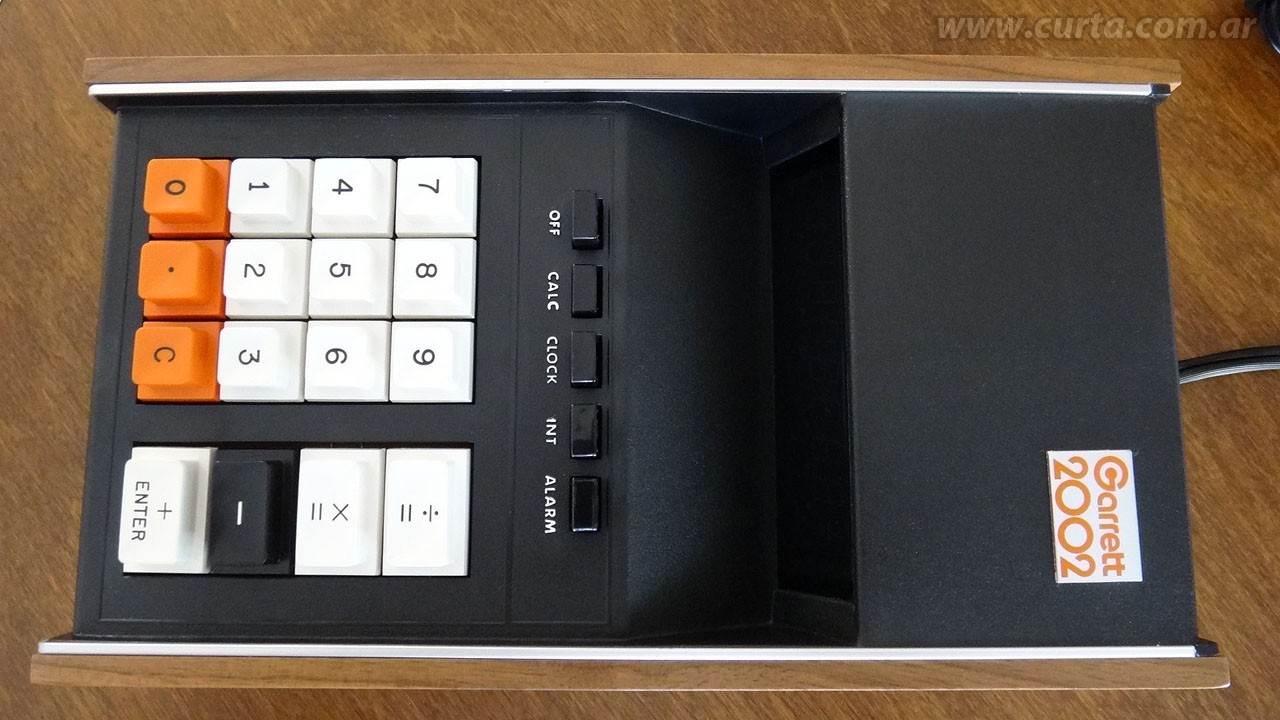

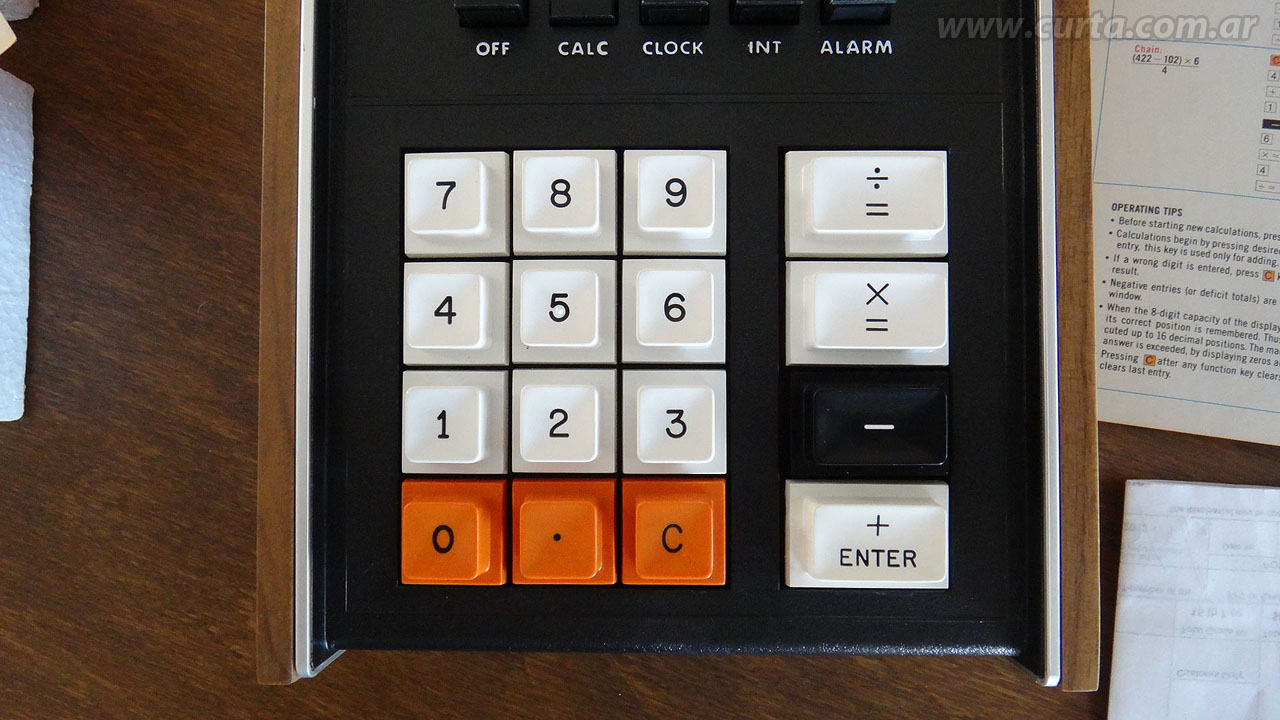

| Keyboard: | 16 big keys plus 5 toggle switches for On/Off, Mode (Calc/Clock/Timer), Alarm On/Off (for clock and timer). |
| Main chips: | National Semiconductor (this calculator is unopened, please see additional readings). |

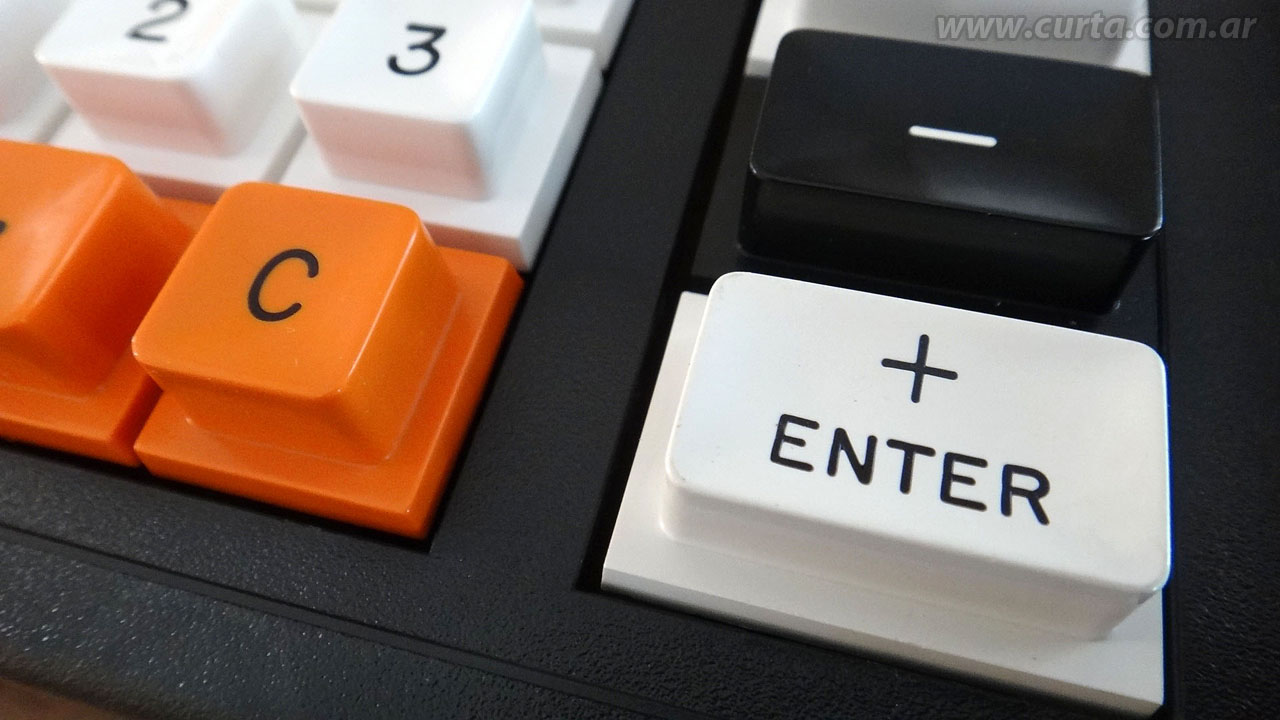

| Logic comments: | Pseudo RPN notation. To add 3+5 you must type 3 +ENTER 5 +ENTER. To subtract 8-5 type 8 +ENTER 5 -. There is no constant and no memory. Overflow is shown with all zeroes and decimal points on and is unrecoverable. There is no -0 bug but it has the decimal point ghost behavior: 2.25 + 3.75 gives 6.00 instead 6. This calculator shows the date and the time, but there is no capability for calculations with them. Date is shown in the format "month-day", without the year. Month and day changes automatically, but there is no "February 29", so you must correct it manually every 4 years! The On/Off switch in Off position is to turn off the display, not the whole machine, so the date, time, timer and the alarm will continue running. |

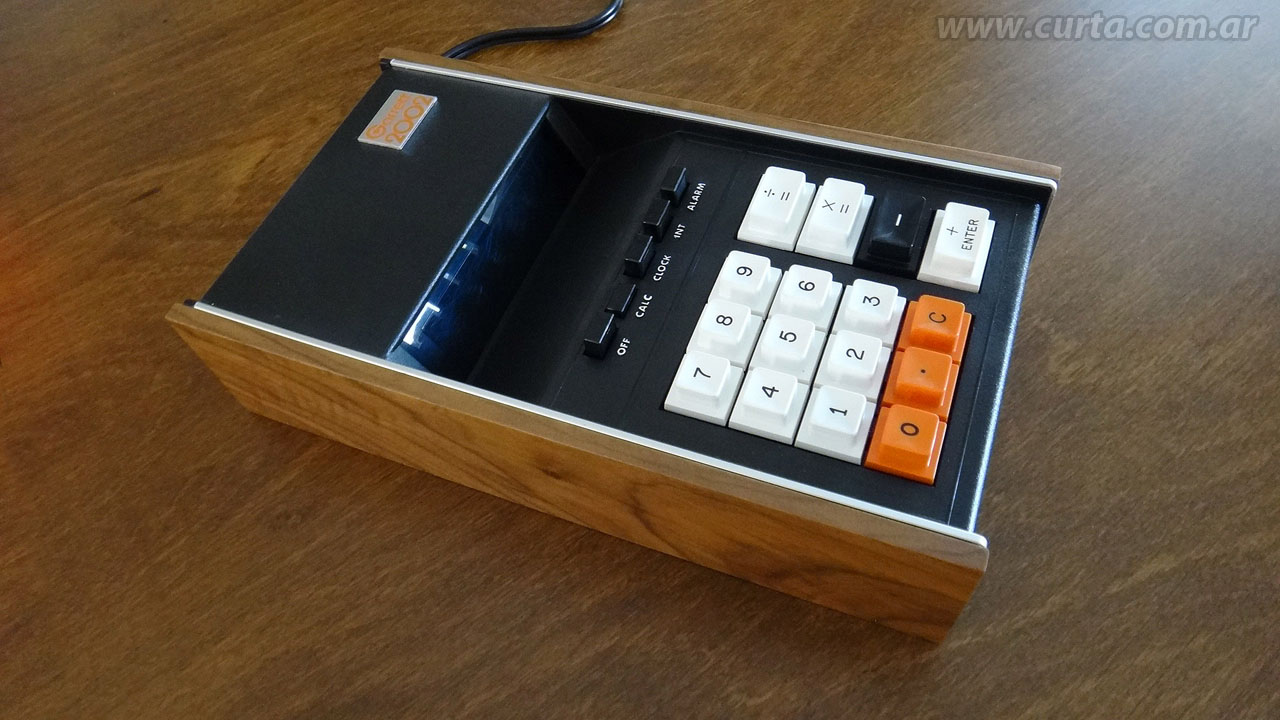

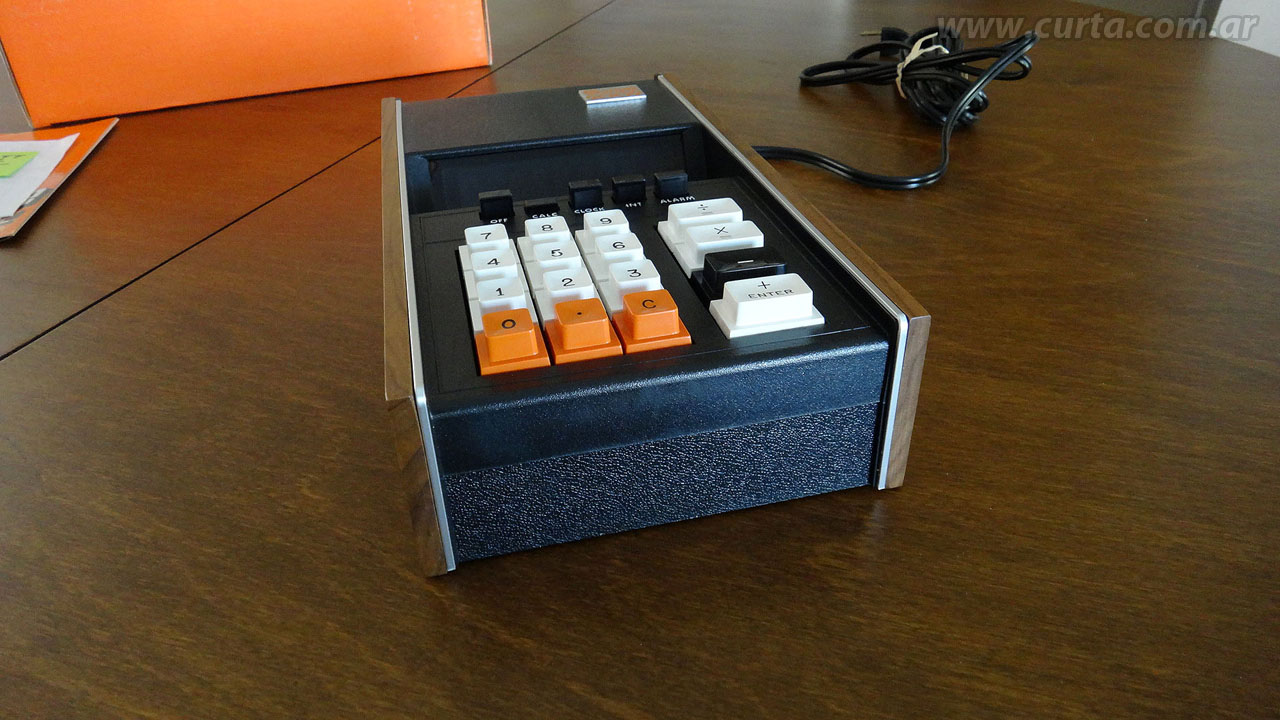

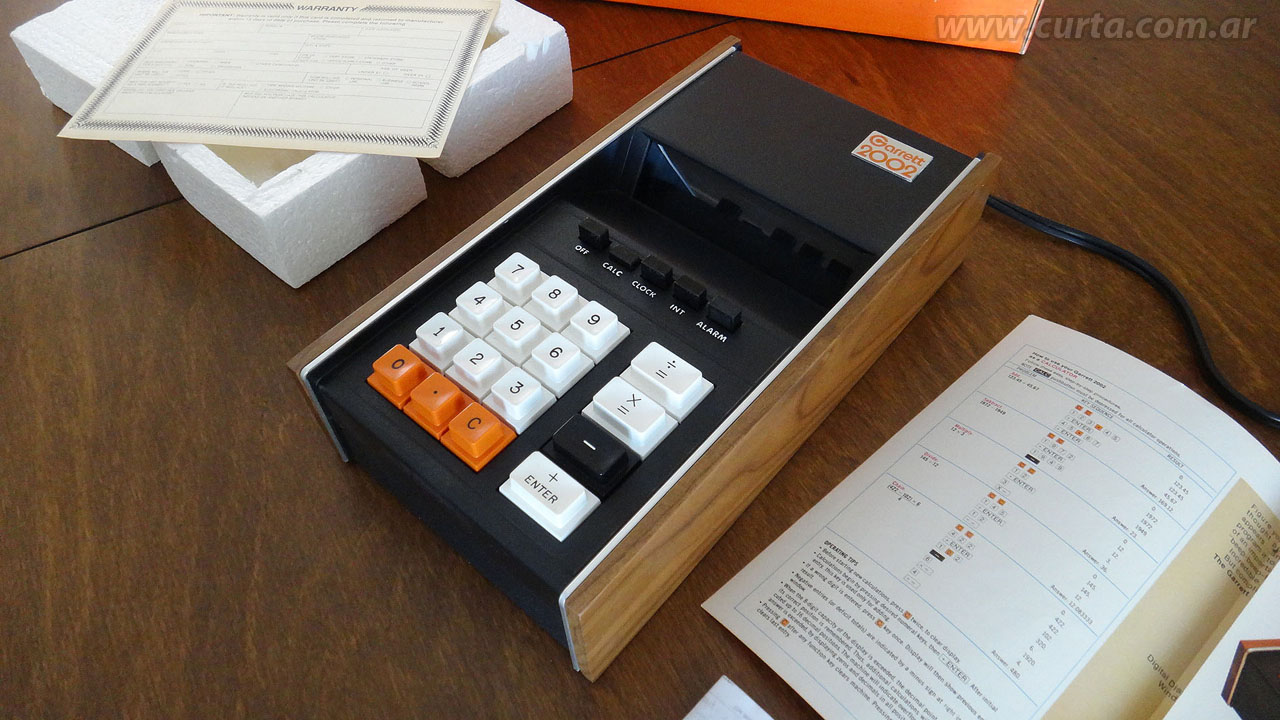

| Remarks: | A top quality desktop calculator for an elegant desk with wood-made laterals and high quality materials. Another nice item from my friend Scott of California! |
| Size: | 9.84 x 5.39 x 2.28 in, 250 x 137 x 58 mm. |

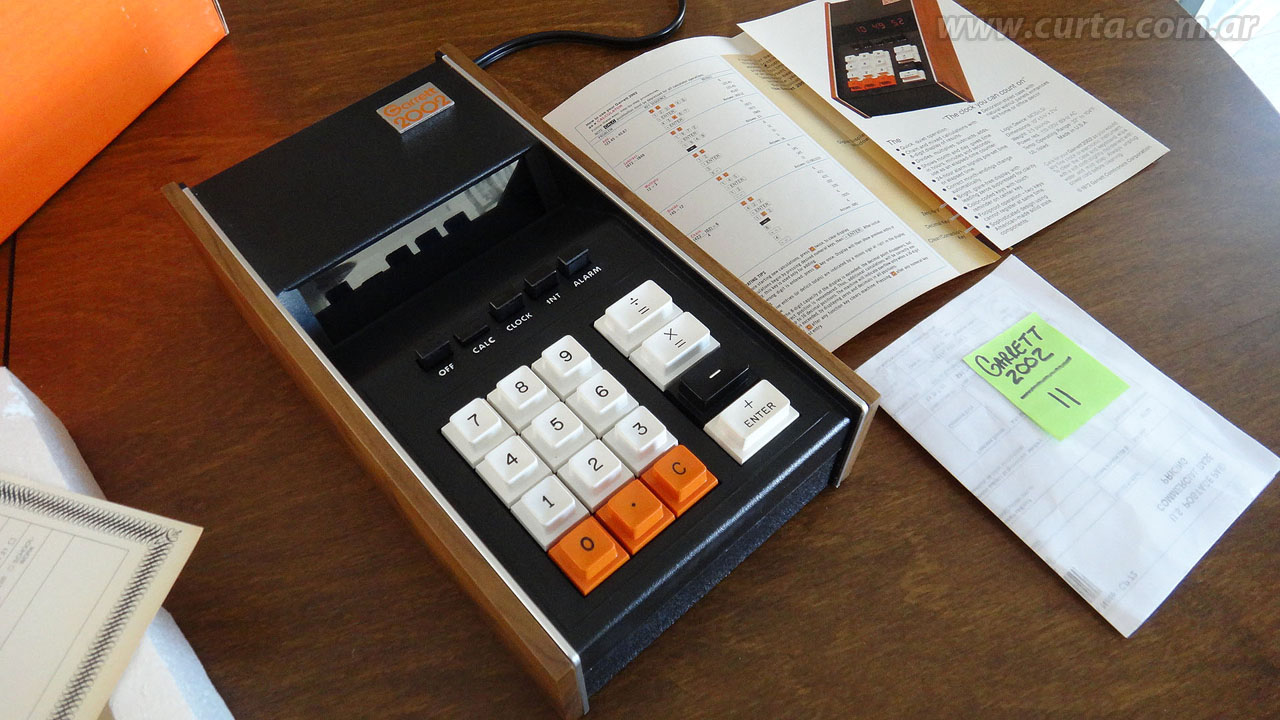

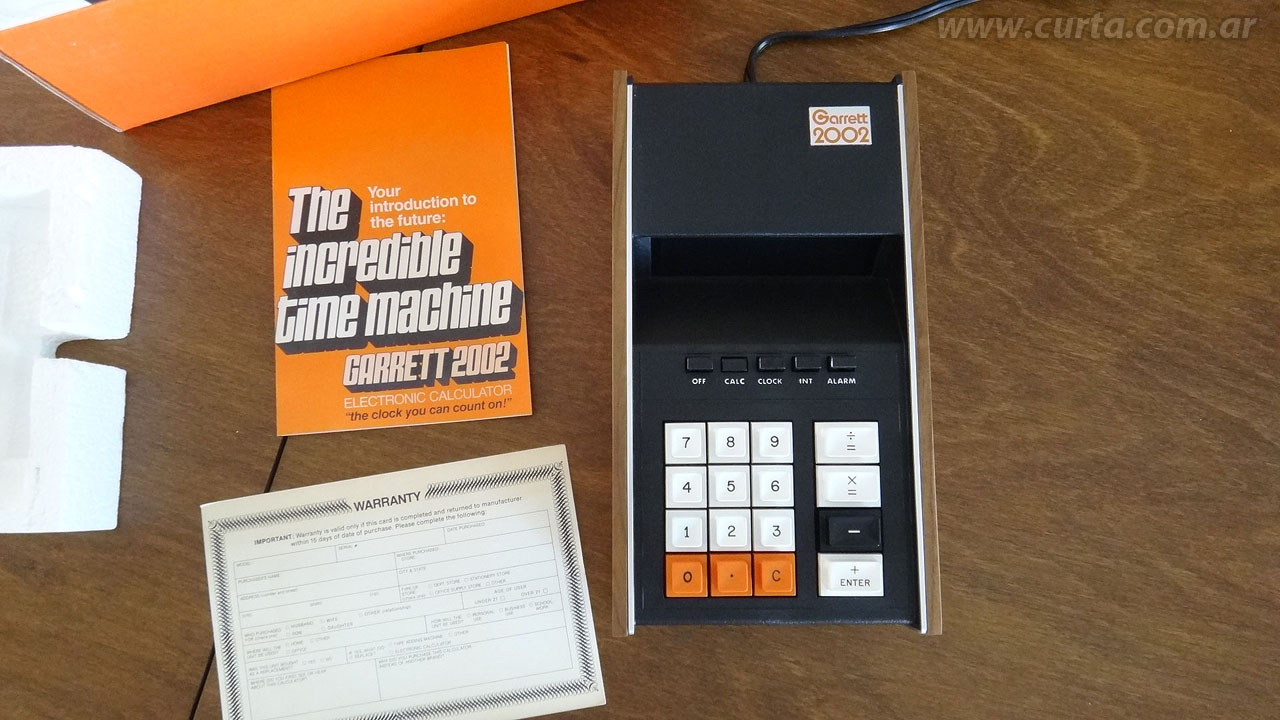

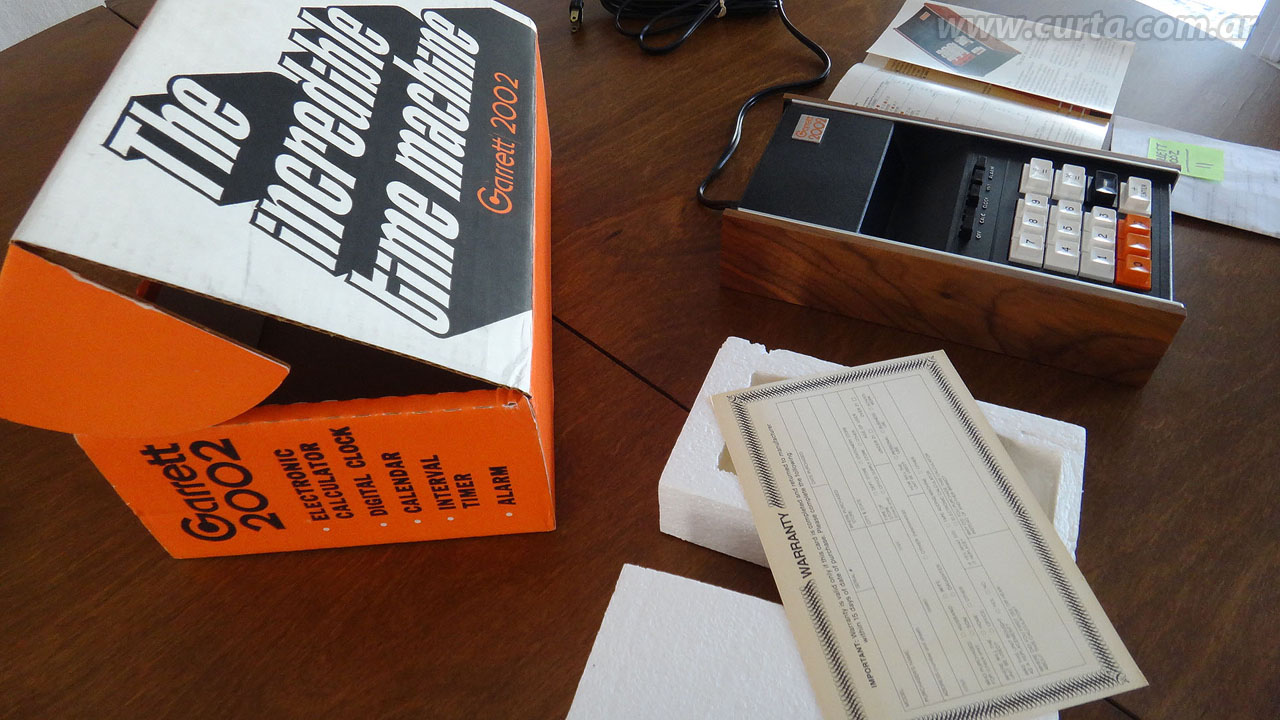

| Accesories: | Original cardboard box with handle and protective tergopol, brochure and full instructions, original warranty. |

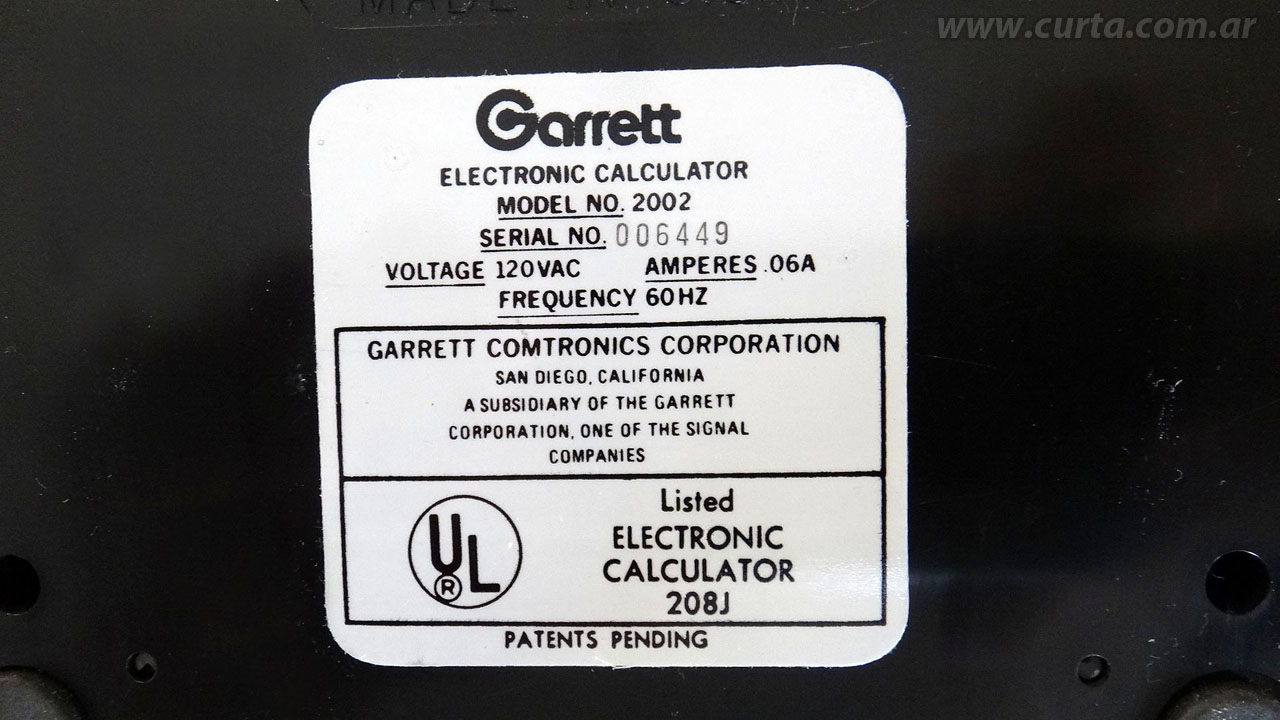

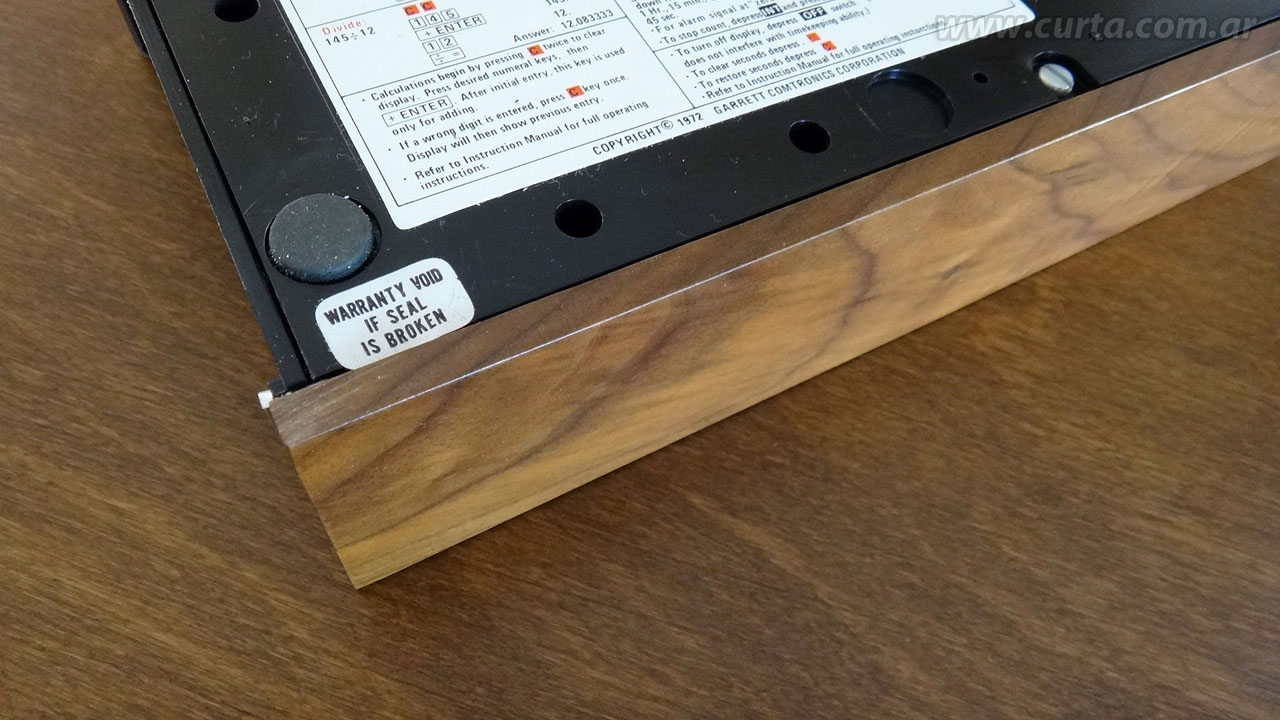

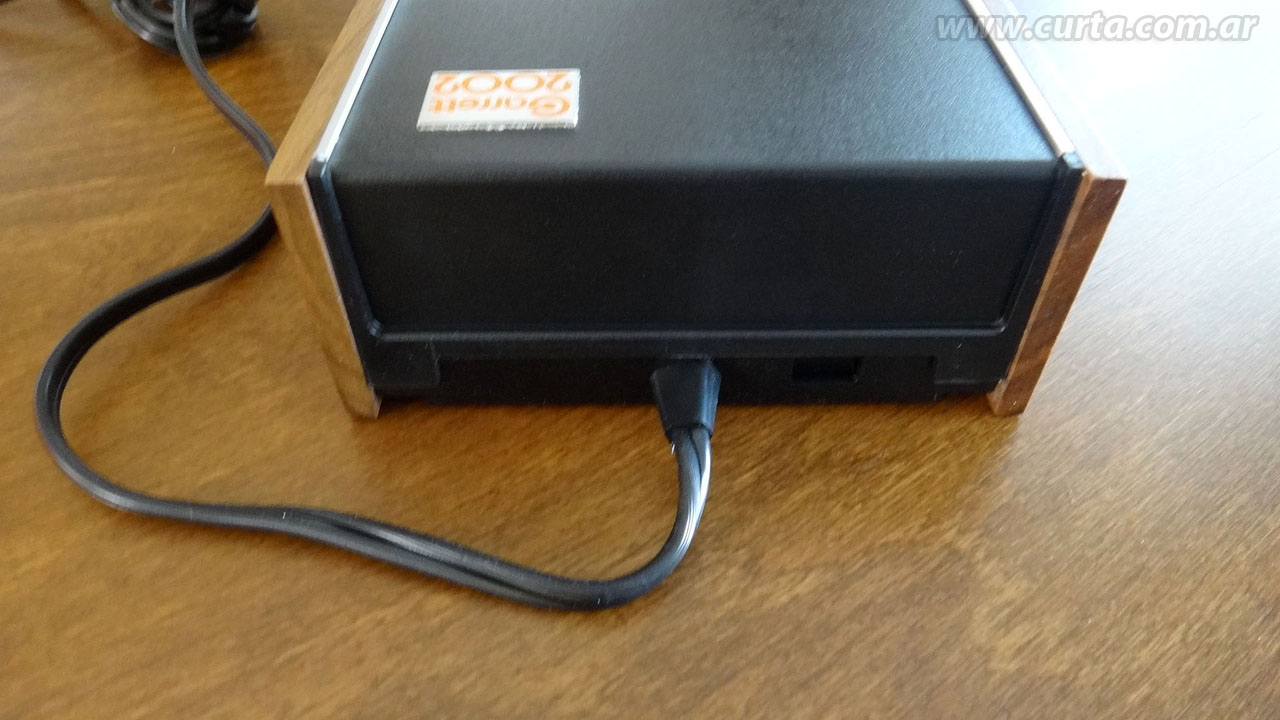

| Condition: | (10/10) New In Box, All items are intact, unused, surely never sold for normal use, full working. Also the warranty seal is intact on the back of the machine! |

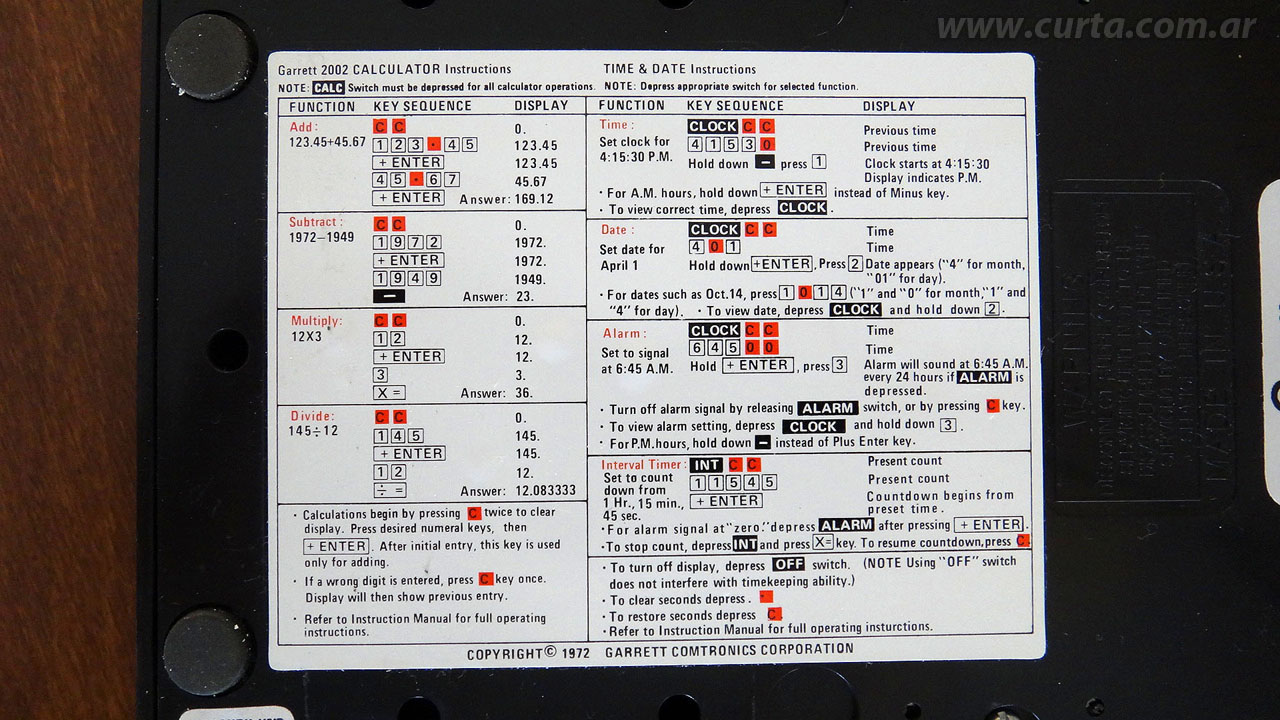

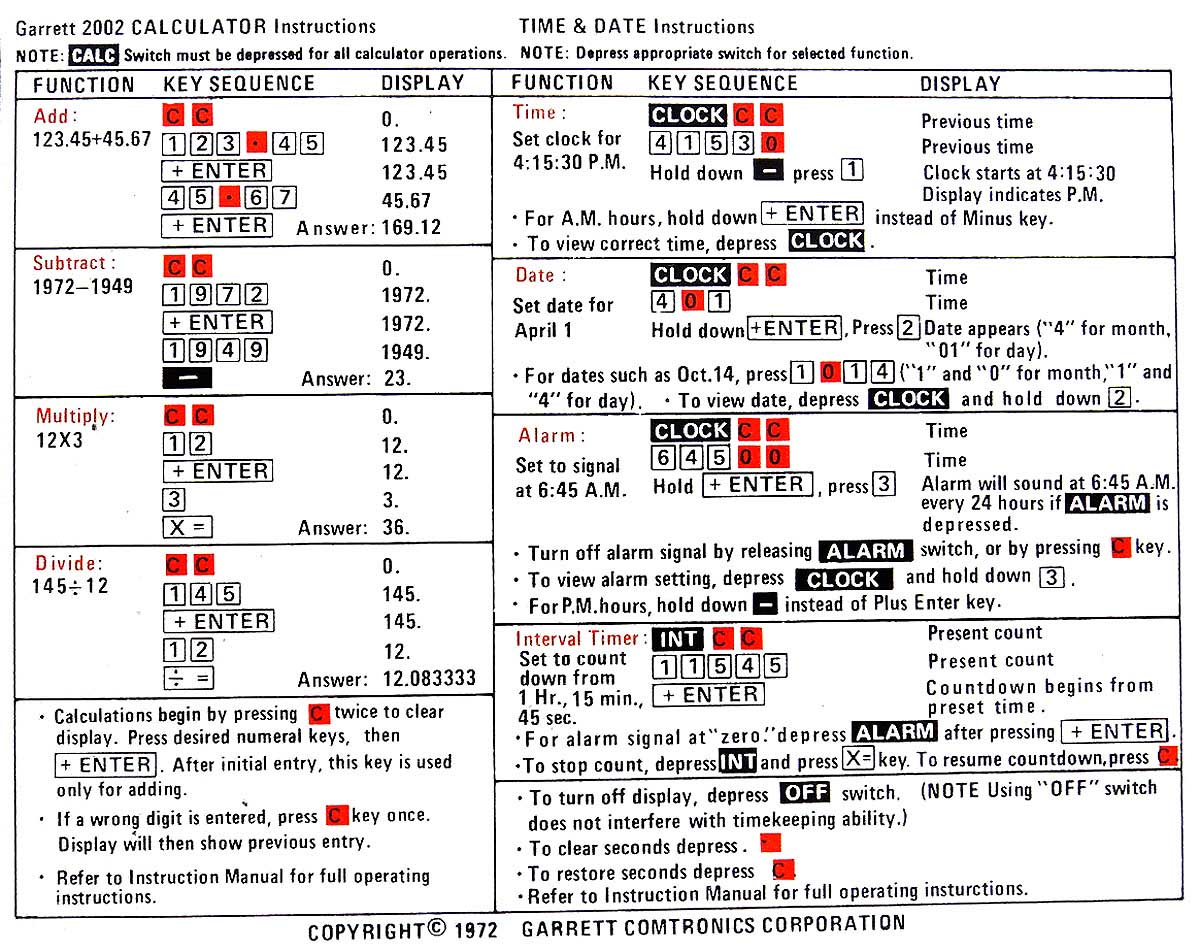

| Download: | Front of the cardboard box "The incredible time machine": download. Back instructions: download. Brochure and full instructions: Face 1, Face 2. Unused original Warranty: Front, Back. |
| Additional readings: | You can get more technical data of this calculator here, from the DataMath Calculator Museum. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
